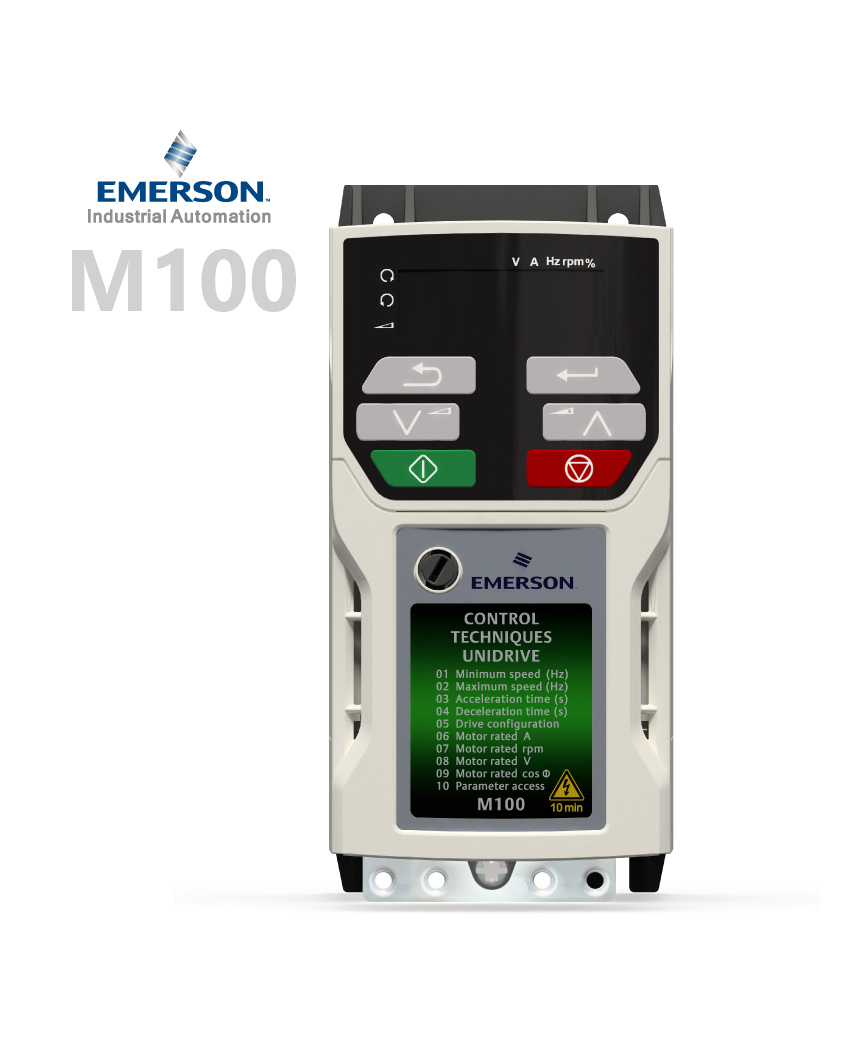

[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1464425295597-dcabcce3-844e”][vc_column_text]Unidrive M100 AC drive – Value drive with quality and performance for open loop applications
0.25 – 7.5 kW (0.33 – 10 hp)
100 V / 200 V / 400 V
Unidrive M100 is a high quality drive designed for general open-loop industrial applications.[/vc_column_text][/vc_tta_section][vc_tta_section title=”Specifications” tab_id=”1464425295721-1b26d1a2-0601″][vc_column_text]Key data
- Heavy Duty rating: 0.25 – 7.5 kW (0.33 – 10 hp)
- Supply phases: 110 V drives – 1 phase, 230 and 400 V drives – 1 or 3 phase
Standard features
Keypad:
- M100: Fixed LED
- M101: Fixed LED with speed reference potentiometer
Parameter cloning via:
- SD card via AI-Back-up adaptor
| VOLTAGE RATINGS | |
| 100 V (100 V – 120 V ± 10%) | ✓ |
| 200 V (200 V – 240 V ± 10%) | ✓ |
| 400 V (380 V – 480 V ± 10%) | ✓ |
| 575 V (500 V – 575 V ± 10%) | |
| 690 V (500 V – 690 V ± 10%) | |
| CONTROL MODE | |
| Open loop vector or V/Hz induction motor control | ✓ |
| Open loop Rotor Flux Control for induction motors (RFC-A) | |
| Open loop permanent magnet motor control (RFC-S) | |
| Closed loop Rotor Flux Control for induction motors (RFC-A) | |
| Closed loop permanent magnet motor control (RFC-S) | |
| Active Front End (AFE) power quality convertor | |
|
FRAME SIZE |
DIMENSIONS (H X W X D) |
WEIGHT |
||
| mm | in | kg | lb | |
| 1 |
160 x 75 x 130
DIN rail mounting*
137 x 75 x 130
|
6.3 x 3.0 x 5.1
DIN rail mounting*
5.4 x 3.0 x 5.1
|
0.75 | 1.65 |
| 2 |
205 x 75 x 150
DIN rail mounting*
180 x 75 x 150
|
8.1 x 3.0 x 5.9
DIN rail mounting*
7.1 x 3.0 x 5.9
|
1.0 | 2.2 |
| 3 | 226 x 90 x 160 | 8.9 x 3.5 x 6.3 | 1.5 | 3.3 |
| 4 | 277 x 115 x 175 | 10.9 x 4.5 x 6.9 | 3.13 | 6.9 |
All dimensions include mounting brackets except for the DIN rail alternative for frames 1 and 2
*Additional fixings required to maximize security[/vc_column_text][/vc_tta_section][vc_tta_section title=”Options” tab_id=”1464425463797-1d3f0716-3998″][vc_column_text]Drive variant
 |
M101 variant Integrated speed reference potentiometer to enhance customer choice and ease of use |
Drive interface units – Back-up
 |
AI-Back-up Adaptor Port adaptor for SD card parameter cloning, and an input for 24 V back-up |
|
AI-Smart Adaptor Has built in memory for parameter cloning, and an input for 24 V back-up |
[/vc_column_text][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]
