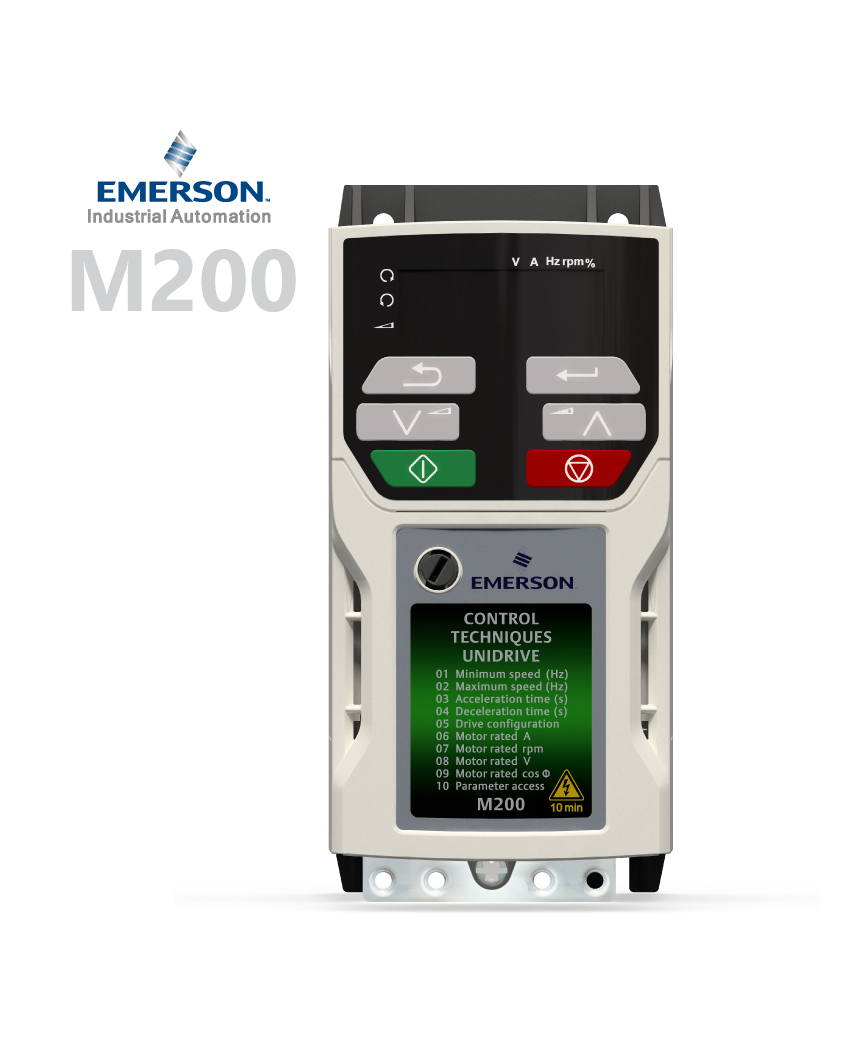

Emerson Unidrive M200 AC drive

Flexible system integration with communications options.

  • M200’s SI interface enables integration with a wide range of available industry standard fieldbuses or extended I/O such as SI-Ethernet, SI-EtherCAT, SI-PROFINET, SI-PROFIBUS, SI-CANopen and SI-DeviceNet
  • AI-485 Adaptor option permits connection to RS485 networks using Modbus RTU

Improve throughput with advanced open-loop motor control algorithms

  • Rotor Flux Control (RFC-A) utilizes closed-loop current control to give maximum stability of induction motors at all powers
Install and configure quickly and easily
  • Easy-to-use fixed LED keypad
  • Useful parameter guide located on the front of the drive
  • Use Unidrive M Connect PC tool or SD card with AI-Backup adaptor to clone and transfer parameter sets
  • Din rail mounting is supported below 1.5kW
รหัสสินค้า: EM200ST หมวดหมู่: ป้ายกำกับ: ,

รายละเอียดเพิ่มเติม

Unidrive M200 AC drive – Flexible machine integration through communications

0.25 – 110 kW (0.33 – 150 hp)

100 V / 200 V / 400 V / 575 V

Unidrive M200 has been designed for applications that require flexible integration with systems via modern communication networks and fieldbuses or advanced RFC-A open-loop motor control. The M200 provides the most convenient upgrade path for Commander SK users.
