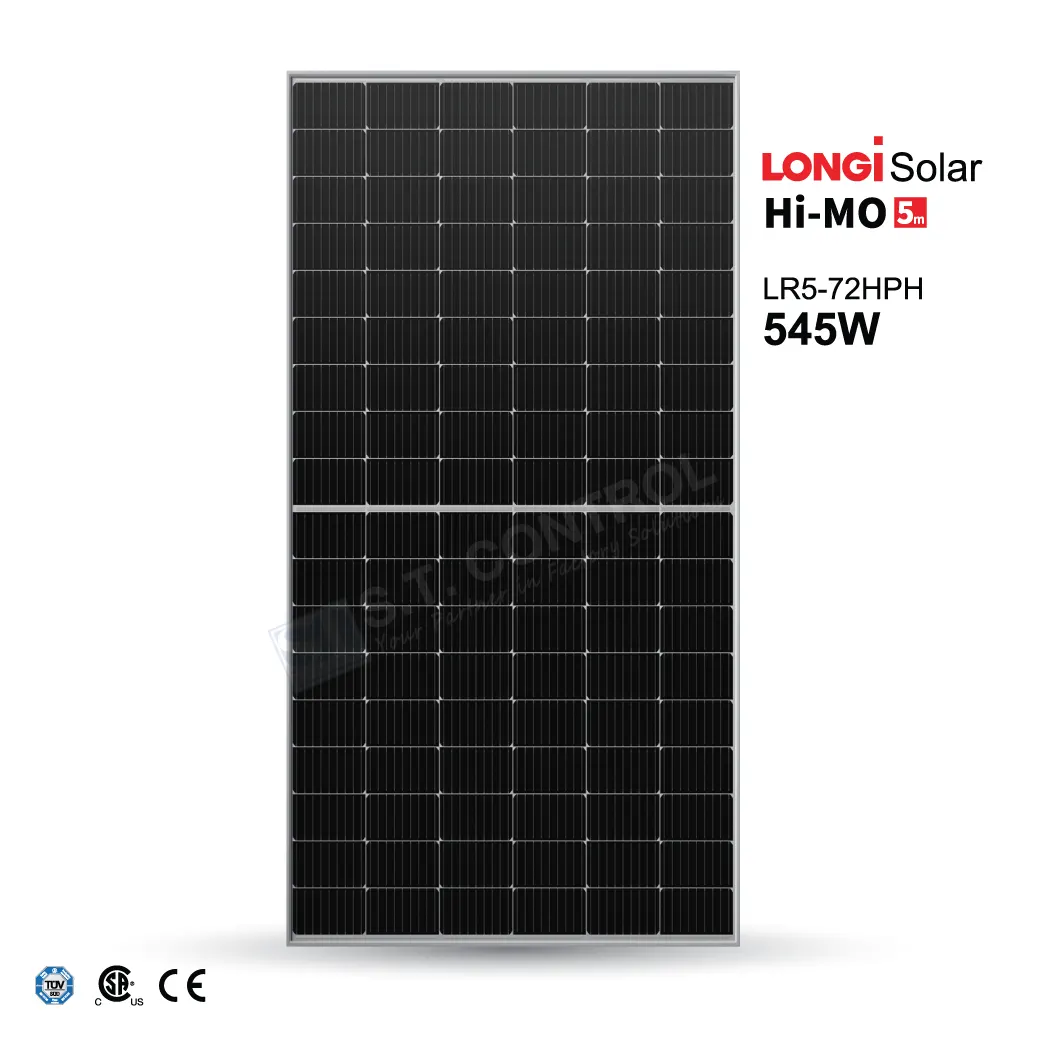

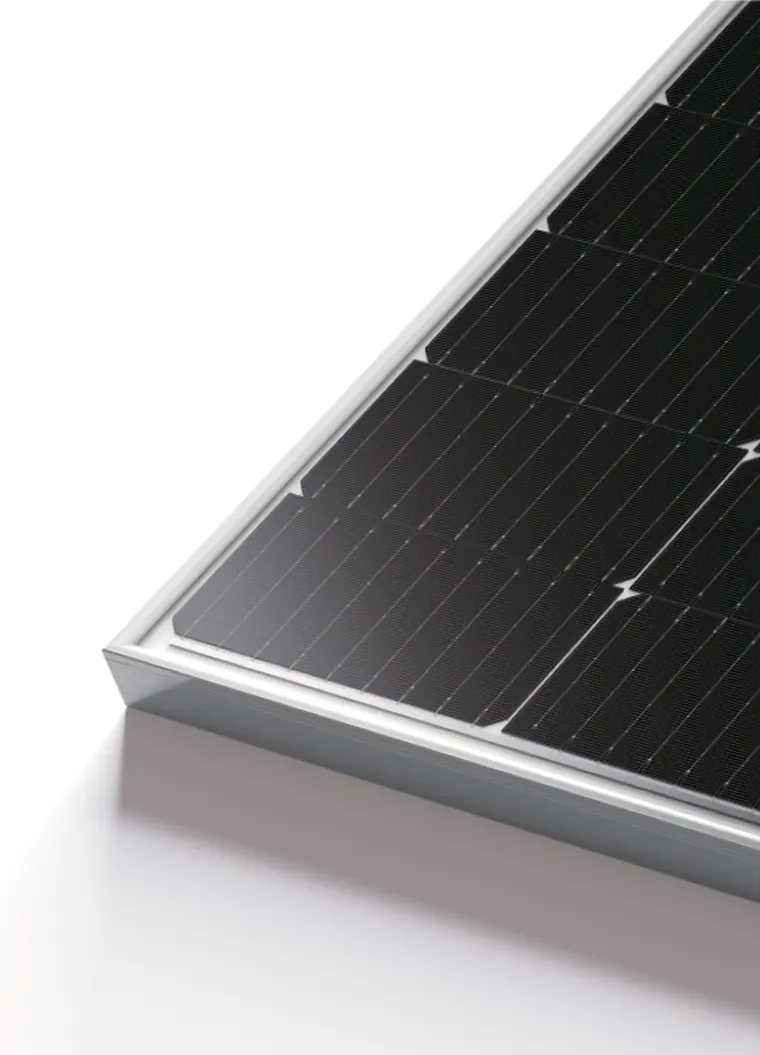

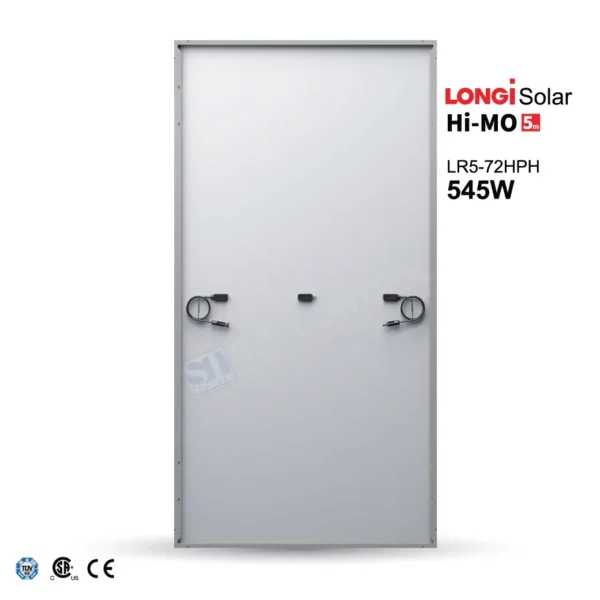

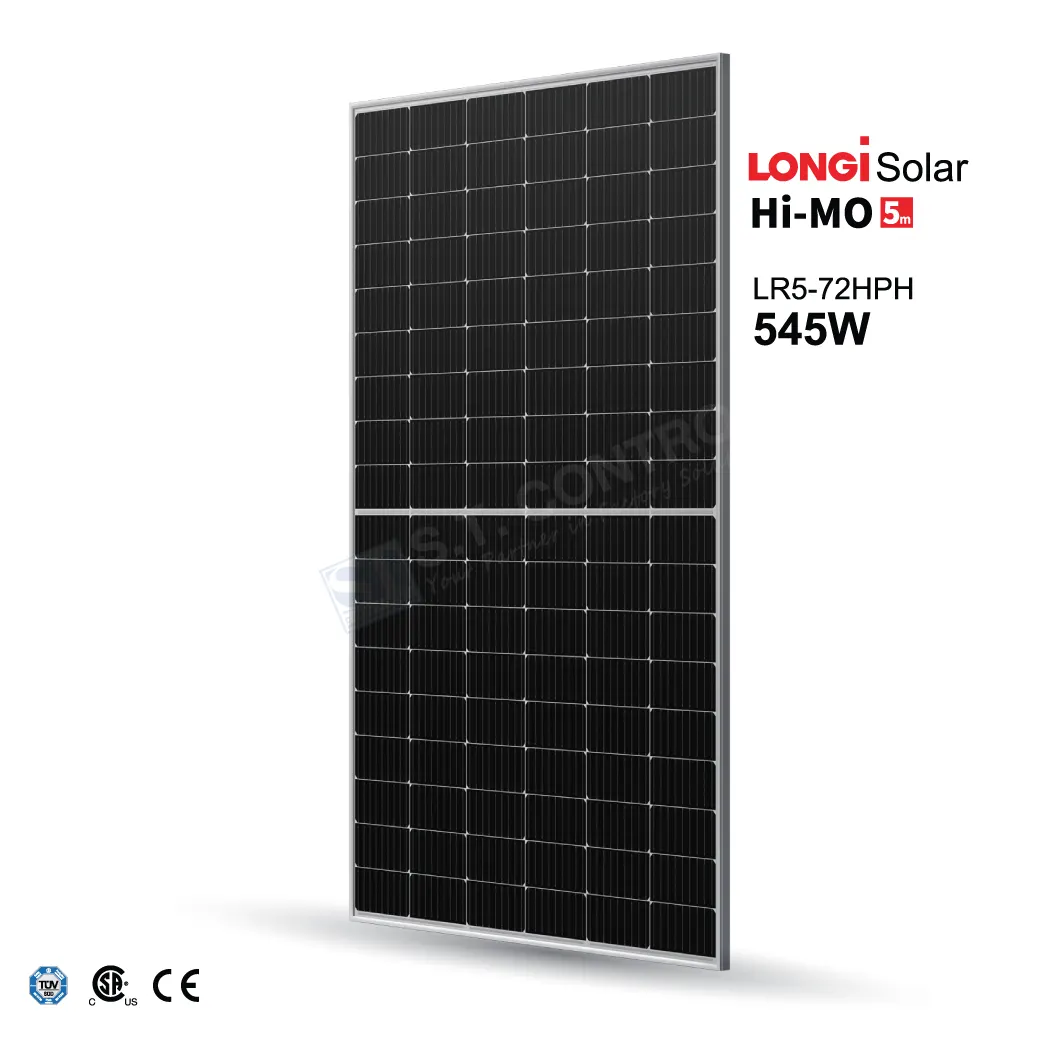

Longi Solar Panels
• Module Type: LR5-72HPH-545M
• Cell: Half Cell, Mono Crystalline
• No. of Cells: 144(6×24)
• Glass: Single glass, 3.2mm coated tempered glass
• Junction Box: IP68, three diodes
• Connector: MC4
Electrical Parameters at STC
• Maximum Power(Pmax/w) : 545W
• Voltage at Maximum Power (Vmp/V) : 41.80VDC
• Current at Maximum Power (Imp/A) : 13.04A
• Open Circuit Voltage(Voc/V) : 49.65VDC
• Short Circuit Current(Isc/A) : 13.92A
• Module Efficiency : 21.1%
Operating Parameters
• Maximum System Voltage : DC1500V(IEC/UL)
• Maximum Series Fuse Rating : 25A
• Operating Temperature : -40°C to 85°C
Product Certifications
• IEC 61215
• IEC 61730
• UL 61730
