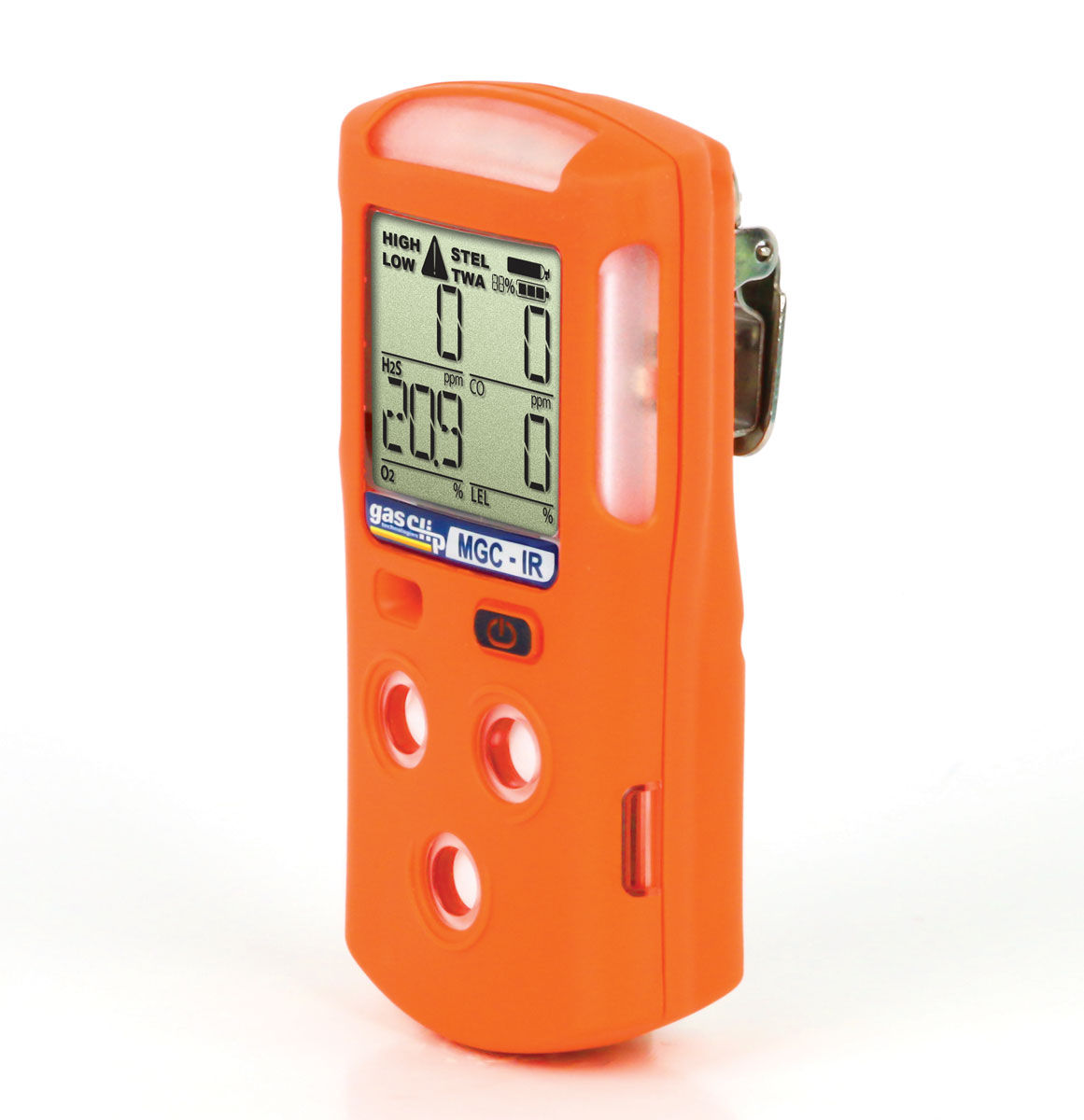

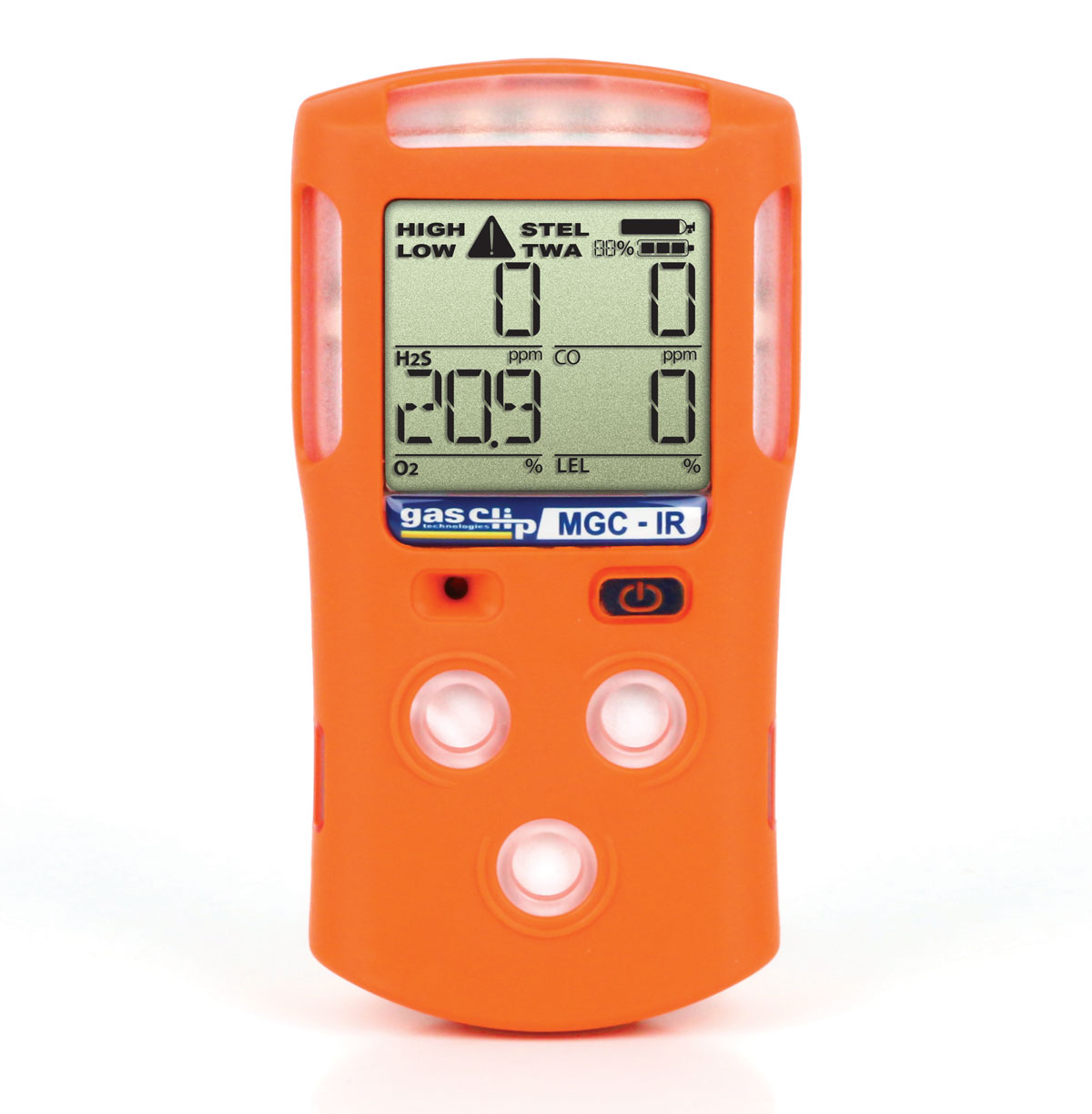

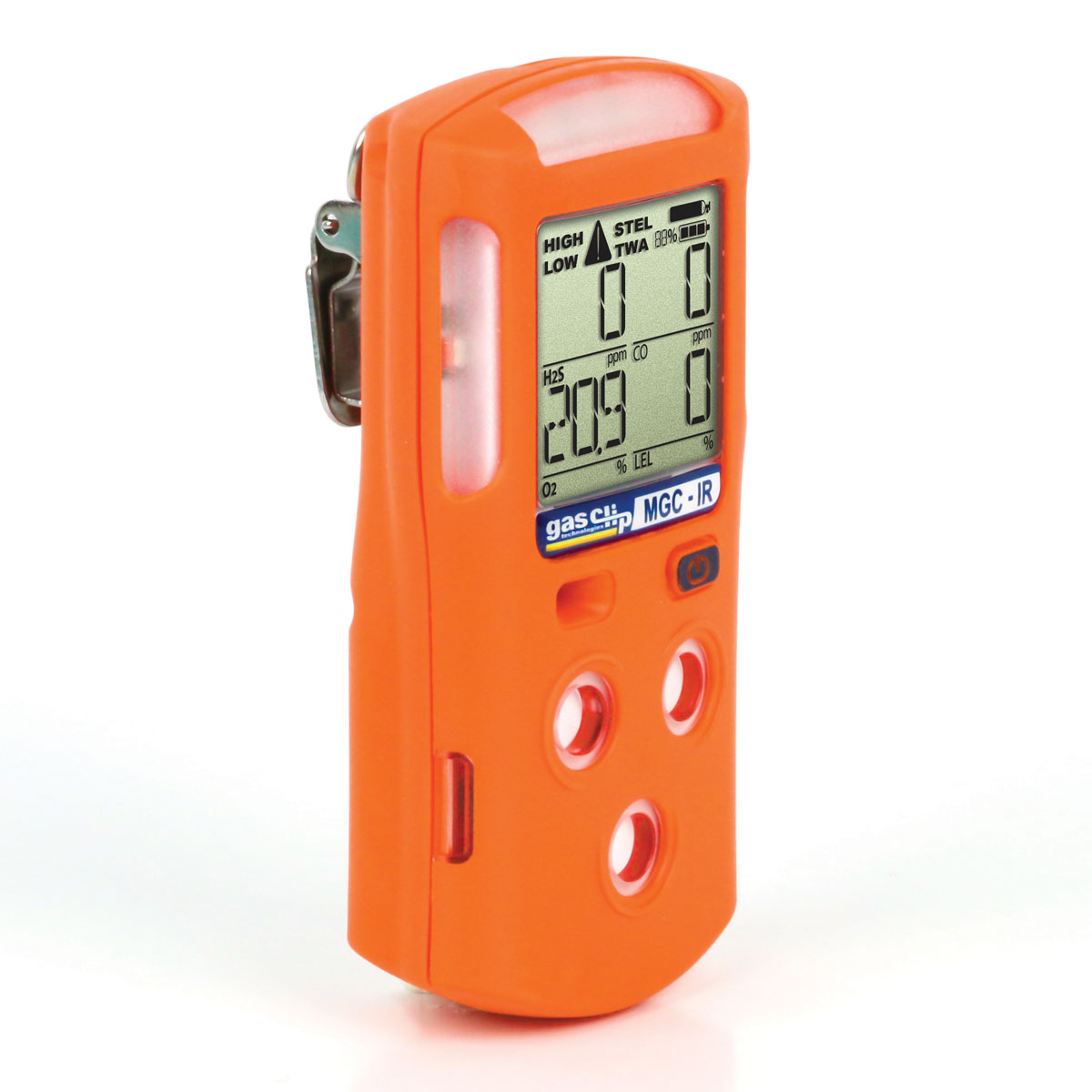

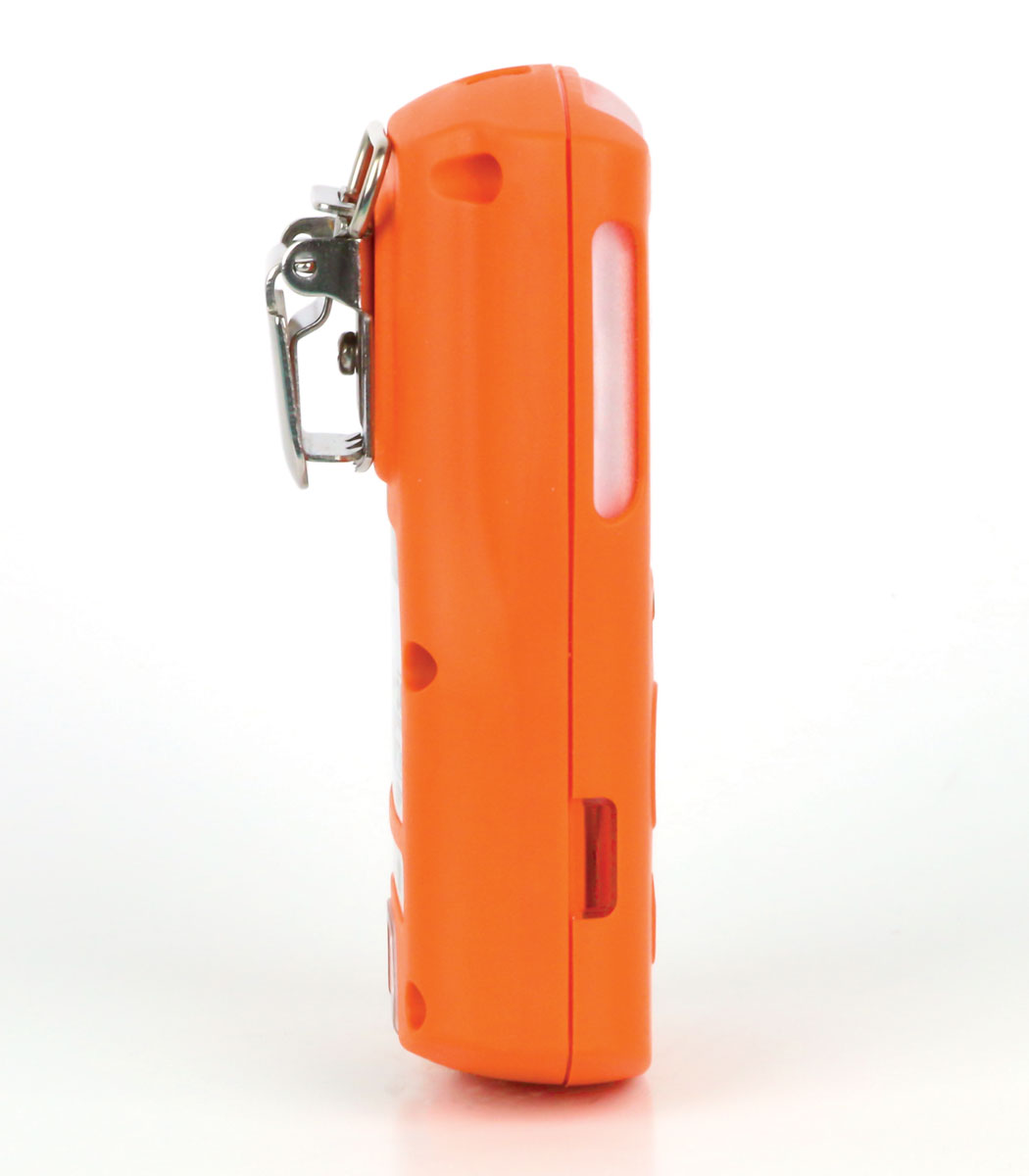

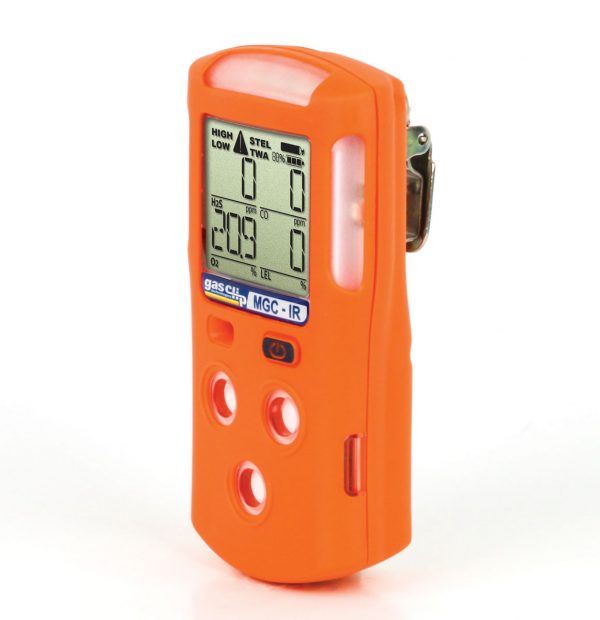

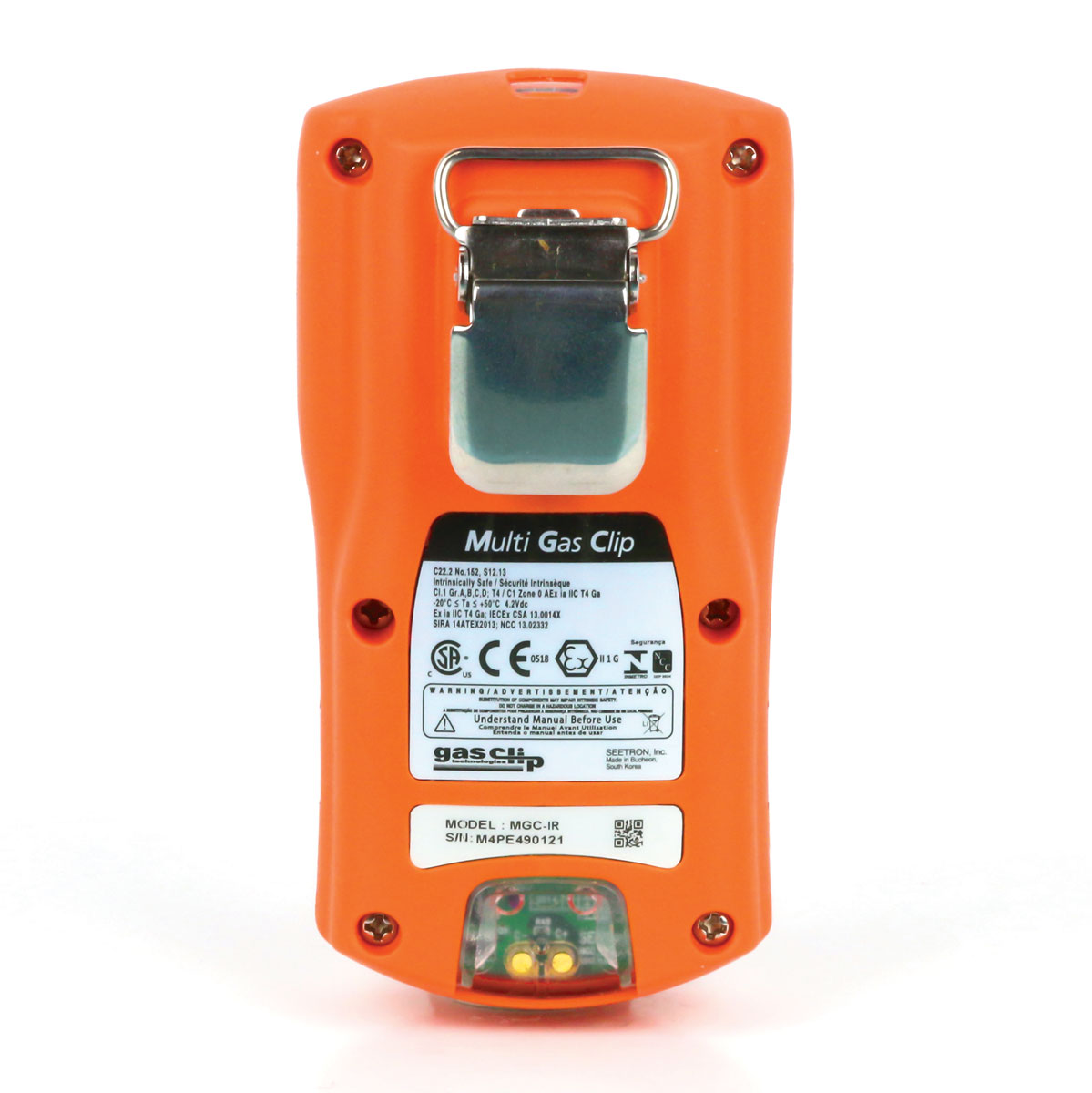

Multi Gas Clip (MGC)

Multi Gas Clip (MGC)

Battery life for months instead of hours!

Day in, day out, your workers have to charge theirportable multi gas detectors so they can keep testing for the presence of combustible gases, H2S, CO, and O2. Unfortunately, sometimes they may forget to do so. Gas Clip Technologies can help prevent this safety risk with our new Multi Gas Clip (MGC). It has the longest battery life of any portable gas detector by a long shot.

The new MGC can go a full 2 months without a charge, even without ever having to be turned off. Shut down the unit nightly and the battery can last up to 4 months. What’s the secret of the MGC’s extended battery life? It uses low-power photo-metric technology for the detection of the combustible gases (LEL). Instead of draining the battery with archaic pellistor technology, the MGC uses an IR source. This conserves power, so the battery lasts and lasts and lasts.

The MGC also eliminates the need to frequently calibrate portable gas detectors. It can go 6 months without being calibrated. That saves time and increases efficiency. Each Multi Gas Clip, IR version, comes with the following features:

  • 2 month battery life (continuous run time)
  • 6 month calibration cycle
  • Will work in inert environments, no need for oxygen
  • Simple to use
  • Bump/Calibration reminders

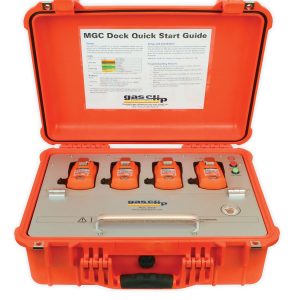

  • Docking station compatible
  • Programmable user ID
รหัสสินค้า: 786329050 หมวดหมู่:

รายละเอียดเพิ่มเติม

Be sure to compare these features to our Single Gas Clip Plus and Single Gas Clip to find the right product for your current application

Specifications

<td”>LEDs

Size 4.7” H × 2.4” W × 1.2” D (118.6 mm H × 61.6 mm W × 31.7 mm D)
Weight 7.7 oz. (240 g)
Temperature -4°F to +122°F / -20°C to +50°C
Humidity 5% to 95% RH (non-condensing)
Battery Life IR: 2 months continuous
Pellistor: 30 hours
Alarms Visual, Vibrating, Audible (minimum 95dB)
Low, High, STEL, TWA and OL (Over Limit)
4 red alarm bar LEDs
Yellow backlight (activated on button press)
Red backlight (activated on alarm condition)
Yellow Maintenance Notification LED
Tests Full function self-test upon activation
Sensors, battery and circuitry continuous
Ingress Protection IP 67

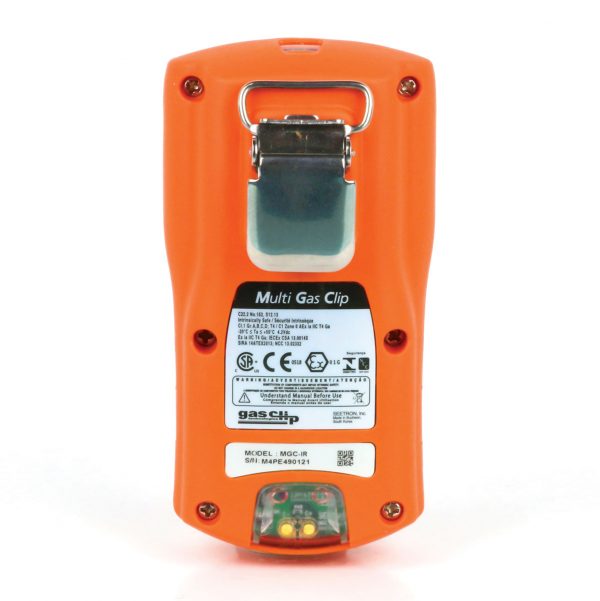

Certifications CSA: Class 1 Div 1 Groups A, B, C and D
CAN/CSA C22.2 No. 157 & C22.2 No. 152
ANS/UL 913 and ANSI?ISA-S12.13 Part 1
ATEX: CE Sira 14ATEX2013 II 1 G, Ex ia IIC T4 Ga
InMetro: IECEx:Ex: EXia IIC T4 GA
Warranty Full 2 years
Gases H2S: 0-100 PPM
CO: 0-500 PPM
Combustible: 0-100 %LEL
O2: 0-30 %
User Options
User ID/Message Maintenance Notification
TWA/STEL Intervals TWA Method
Language (6) Sensor Disable
Latching Alarms SAFE Display
Self-Test Lock Dock Lock
Auto-zero on start up Calibration gas
Bump Test Interval Calibration Interval
