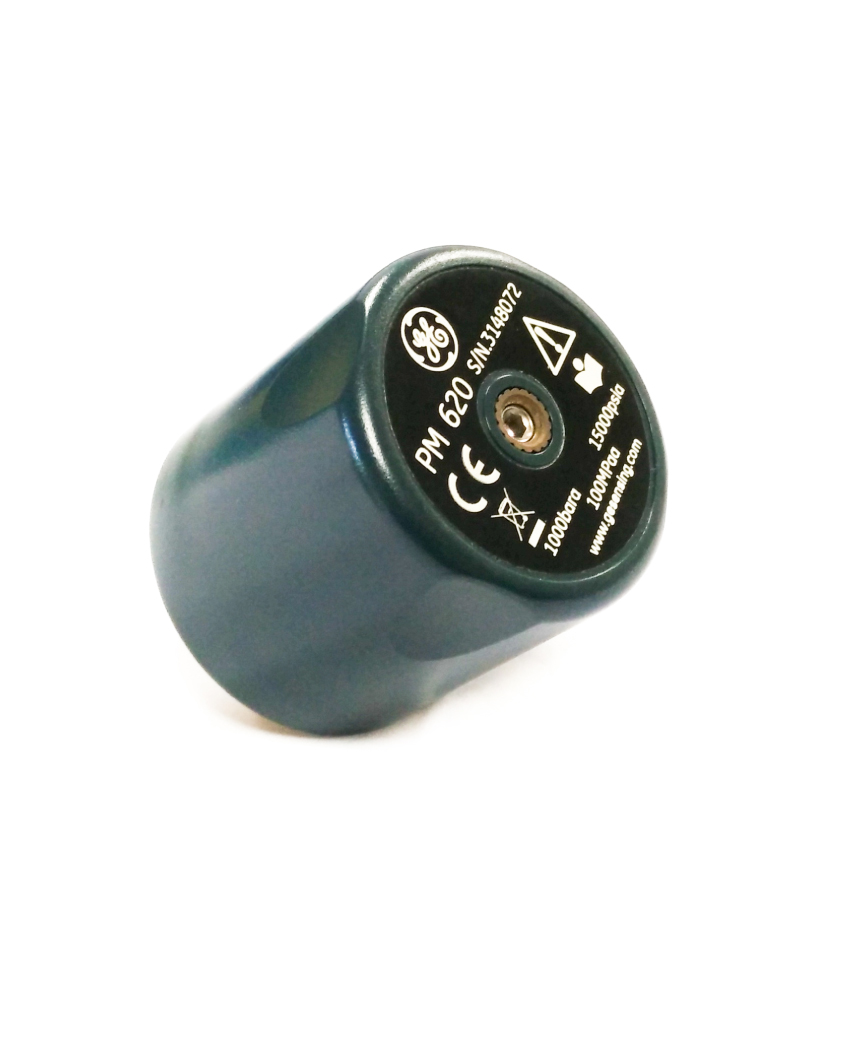

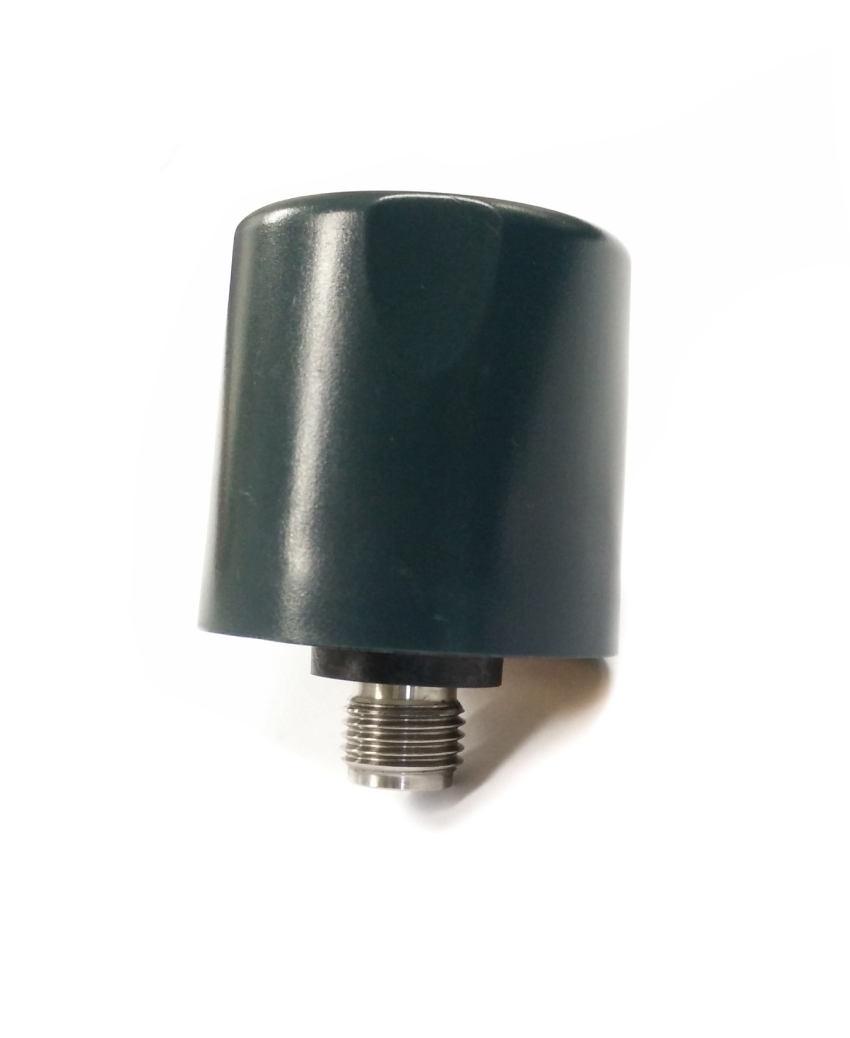

The GE Druck PM 620 Series Interchangeable Pressure Modules is the latest development in digital output sensor technology incorporating a number of key innovations – allow pressure re-ranging of compatible equipment. A simple screw fit makes both the pressure and electrical connections without the need for tools, sealing tape, cables or plugs and digital characterization allows interchangeability without set-up or calibration. The GE Druck PM620 modules can be changed in a few seconds tore-range an instrument at a fraction of the cost of a new one. The GE Druck PM-620 pressure modules can be used in conjunction with the relevant pneumatic or hydraulic pressure station and the Druck DPI 620 multifunction calibrator – form an integrated pressure calibrator for test and calibration of pressure instruments including transmitters, transducers, switches, gauges, indicators and recorders. Alternatively, the GE Druck PM/620 modules can be combined with the pressure station by a module carrier, which adds a dual channel pressure measurement capability that can be re-ranged in seconds.
Pressure ranges are available from 25 mbar – 1000 bar (10 inH2O – 15000 psi) with a total measurement uncertainty, including operation over 0 – 50°C (32 – 122°F) for one year.
| IIPM-620-02G | GE” Pressure Module ? 200 mbar g | 40,640.00 |
| IIPM-620-03G | GE” Pressure Module ? 350 mbar g | 42,960.00 |
| IIPM-620-06A | GE” Pressure Module 0 to 1.2 bar a | 40,600.00 |
| IIPM-620-07G | GE” Pressure Module -1 to 2 bar g | 35,345.00 |
| IIPM-620-08G | GE” Pressure Module -1 to 3.5 bar g | 40,600.00 |
| IIPM-620-11G | GE” Pressure Module -1 to 10 bar g | 38,435.00 |
| IIPM-620-13G | GE” Pressure Module -1 to 20 bar g | 35,345.00 |
| IIPM-620-14G | GE” Pressure Module 0 to 35 bar g | 43,730.00 |
| IIPM-620-165G | GE” Pressure Module 0 to 100 bar g | 41,595.00 |
| IIPM-620-17G | GE” Pressure Module 0 to 135 bar g | 40,530.00 |
| IIPM-620-18G | GE” Pressure Module 0 to 200 bar g | 40,530.00 |
| IIPM-620-20A | GE” Pressure Module 0 to 350 bar a | 45,120.00 |
| IIPM-620-23A | GE” Pressure Module 0 to 1,000 bar a | 52,535.00 |
