Dimensions and Part Names

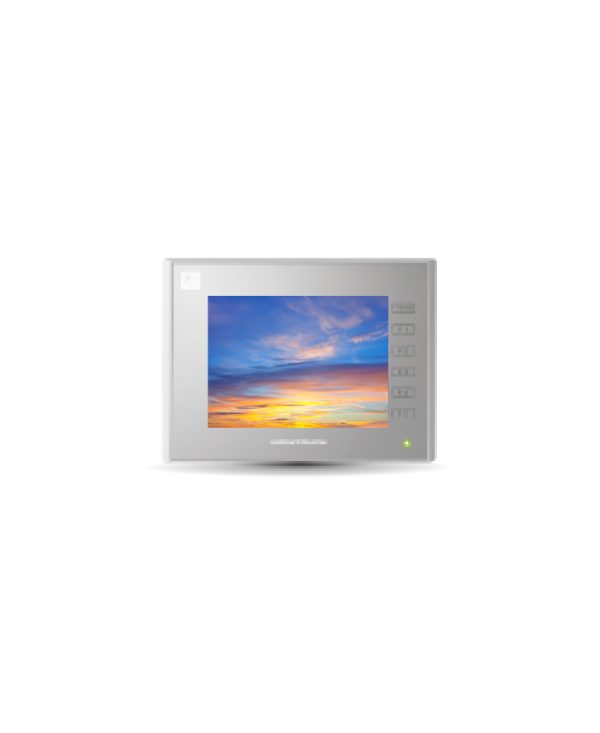

| V9060iT | ||
|---|---|---|
| Power supply | Rated voltage | DC24V |
| Permissible range of voltage | ±10％ | |
| Permissible momentary power failure | within 1ms | |
| Demand (maximum rating) | 13W or less | |
| Insulation resistance | DC500V 10MΩ or more | |
| Physical environment | Ambient temperature | 0～50℃*1 |
| Ambient humidity | 85%RH or less (without dew condensation)*1 | |
| Operation altitude | 2,000 meters or lower | |
| Atmosphere | Not to be exposed to corrosive gas, or conductive dust | |
| Storage temperature | -10～60℃*1 | |
| Storage temperature | 85%RH or less (without dew condensation)*1 | |
| Overvoltage category | Category II | |
| Contamination level | Level 2 | |
| Mechanical operating conditions | Resistance to oscillation | Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5～9Hz, pulsating with:3.5mm, 9～150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each) |
| Resistance to shock | Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, three times each (18 times in total) |
|
| Electric operating conditions | Resistance to noise | Noise voltage: 1,000Vp-p, pulse width: 1μs, pulse rise time: 1ns |
| Resistance to static discharge | Complies with IEC61000-4-2, contact: 6kV, air: 8kV | |
| Installation conditions | Grounding | Grounding resistance: Less than 100Ω, FG/SG separation |
| Structure | Protection structure: Front case: IP66, Type 4X/13(when water-proof gasket is used), Rear case: IP20, single unit, installation method: panel mounting | |
| Cooling system | Natural air cooling | |
| Dimensions W*H*D(mm) | 182.5×138.8×53.0 | |
| Dimensions W*H*D(mm) | 174.0×131.0（+0.5/-0） | |
| Case color | Light gray (black front housing for black model) |
|
| Material | PC resin | |
- *1: Use at a wet-bulb temperature of 39°C or less because higher temperatures may cause failure.
Performance Specifications
| Screen memory (FROM) | 64MB | |
|---|---|---|
| Backup memory (SRAM) | 800KB | |
| Display | Display device | TFT color LCD |
| Resolution | 640×480 | |
| Display size | 5.7″ | |
| Colors | 260 thousand *2 | |
| Backlight | LED | |
| Backlight life | 50,000 hours | |
| Touch switch | Type | Analog resistance film |
| Function switch | Quantity | 6 |
| External interface | D-Sub 9-pin (CN1)*3 | RS-232C, RS-485(two-wire system), RS-422(four-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps |
| Modular 8-pin (MJ1/ MJ2) |
RS-232C, RS-485(two-wire system), RS-422(four-wire system)*4 , Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500*5 bps |
|
| SD card | One card slot provided as standard | |
| Ethernet | 1ch, Baud rate: 100Mbps, 10Mbps |
|
| Wireless LAN | – | |
| USB | Type A、Type mini-B(Ver.2.0) | |
| Sound output | – | |
| Clock | Backup period | 5 years (Ambient temperature 25°C) |
| Calendar accuracy | Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied) | |
| Standard | CE marking | EN61000-6-2, EN61000-6-4, EN50581 |
| UL･cUL | UL61010-1、UL61010-2-201*6 、ANSI/ISA 12.12.01 | |
| KC *7 | Compliant | |
| Radio Act | – | |
| Classification Standard | Nippon Kaiji Kyokai (NK) American Bureau of Shipping (ABS) Lloyd’s Register of Shipping (LR) Det Norske Veritas (DNV) |
- *2: For displaying pictures, 3D parts,video, and RGB input (excluding high-speed mode) only. Other parts are displayed in 65,536 colors.
- *3: Optional unit (DUR-00) is required for the V9071iW and V9060iTD.
- *4: 187,500 bps (four-wire system) for the V9071iW and V9060iTD MJ2 only.
- *5: Only for Siemens MPI (Incompatible with DUR-00).
- *6: Only for Hardware Ver. f or later. Applicable standard for Hardware Ver. a to e is UL 508.
- *7: Black model not certified
