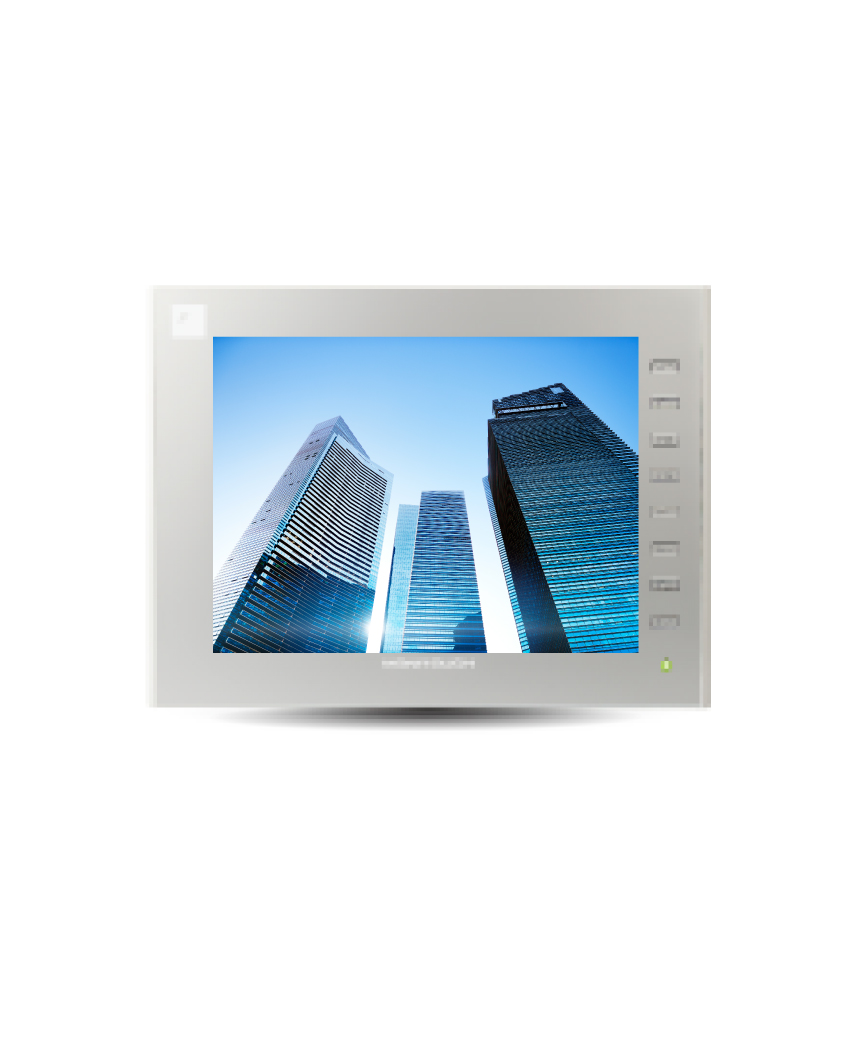

Dimensions and Part Names
| V9080iS | ||
|---|---|---|
| Power supply | Rated voltage | DC24V |
| Permissible range of voltage | ±10％ | |
| Permissible momentary power failure | within 1ms | |
| Demand (maximum rating) | 28Ｗ or less | |
| Insulation resistance | DC500V 10MΩ or more | |
| Physical environment | Ambient temperature | 0～50℃ *1 |
| Ambient humidity | 85%RH or less (without dew condensation) *1 | |
| Operation altitude | 2,000 meters or lower | |
| Atmosphere | Not to be exposed to corrosive gas, or conductive dust | |
| Storage temperature | -10～60℃ *1 | |
| Storage humidity | 85%RH or less (without dew condensation) *1 | |
| Overvoltage category | Category II | |
| Contamination level | Level 2 | |
| Mechanical operating conditions | Resistance to oscillation | Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5̃9Hz, pulsating with:3.5mm, 9̃150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each) |
| Resistance to shock | Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, three times each (18 times in total) |
|
| Electric operating conditions | Resistance to noise | Noise voltage: 1,500Vp-p, pulse width: 1μs, pulse rise time: 1ns |
| Resistance to static discharge | Complies with IEC61000-4-2, contact: 6kV, air: 8kV | |
| Installation conditions | Grounding | Grounding resistance: Less than 100Ω, FG/SG separation |
| Structure | Protection structure: Front case: IP66, Type 4X/13 *2(when water-proof gasket is used), Rear case: IP20, single unit, installation method: panel mounting | |
| Cooling system | Natural air cooling | |
| Dimensions W*H*D(mm) | 235.0×180.0×48.9 | |
| Panel cutout (mm) | 220.5×165.5（+0.5/-0） | |
| Case color | Light gray (black front housing for black model) |
|
| Material | PC resin | |
- *1: Use at a wet-bulb temperature of 39°C or less because higher temperatures may cause failure.
Performance Specifications
| Screen memory (FROM) | 64MB | |
|---|---|---|
| Backup memory (SRAM) | 800KB | |
| Display | Display device | TFT color LCD |
| Resolution | 800×600 | |
| Display size | 8.4″ | |
| Colors | 16.7 million*3 | |
| Backlight | LED | |
| Backlight life | 70,000 hours | |
| Touch switch | Type | Analog resistance film |
| Function switch | Quantity | 8 |
| External interface | D-Sub 9-pin (CN1) | RS-232C/ RS-485(2-wire system)/ RS-422(4-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500 *4bps |
| Modular 8-pin （MJ1/MJ2） |
RS-232C/ RS-485(2-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps |
|
| SD card | One card slot provided as standard | |
| Ethernet | 1ch, Baud rate: 100Mbps, 10Mbps |
|
| Wireless LAN *5 | Complies with IEEE802.11b/g/n (2.4GHz) | |
| USB | Type A,Type mini-B(Ver.2.0) | |
| Sound output | 1ch provided as standard | |
| Clock | Backup period | 5 years (Ambient temperature 25°C) |
| Calendar accuracy | Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied) | |
| Standard | CE marking | EN61000-6-2、EN61000-6-4、EN50581 *7 |
| UL･cUL | UL61010-1、UL61010-2-201 *6、ANSI/ISA 12.12.01 *2 | |
| KC *7*8 | Compliant | |
| Radio Act *5 | Japan: TELEC | |
| Classification Standard *7*9 | Nippon Kaiji Kyokai (NK) American Bureau of Shipping (ABS) Lloyd’s Register of Shipping (LR) Det Norske Veritas (DNV) |
- *2: Hardware of Ver. b or later.
- *3: For displaying pictures, 3D parts,video, and RGB input (excluding high-speed mode) only. Other parts are displayed in 65,536 colors.
- *4: Only for Siemens MPI (Incompatible with DUR-00).
- *5: Wireless LAN-compatible products only.
- *6: Only for Hardware Ver. f or later. Applicable standard for Hardware Ver. a to e is UL 508.
- *7: Wireless LAN compatible products are not supported.
- *8: Black model not certified
- *9: Hardware Ver. c or higher.
