Dimensions and Part Names

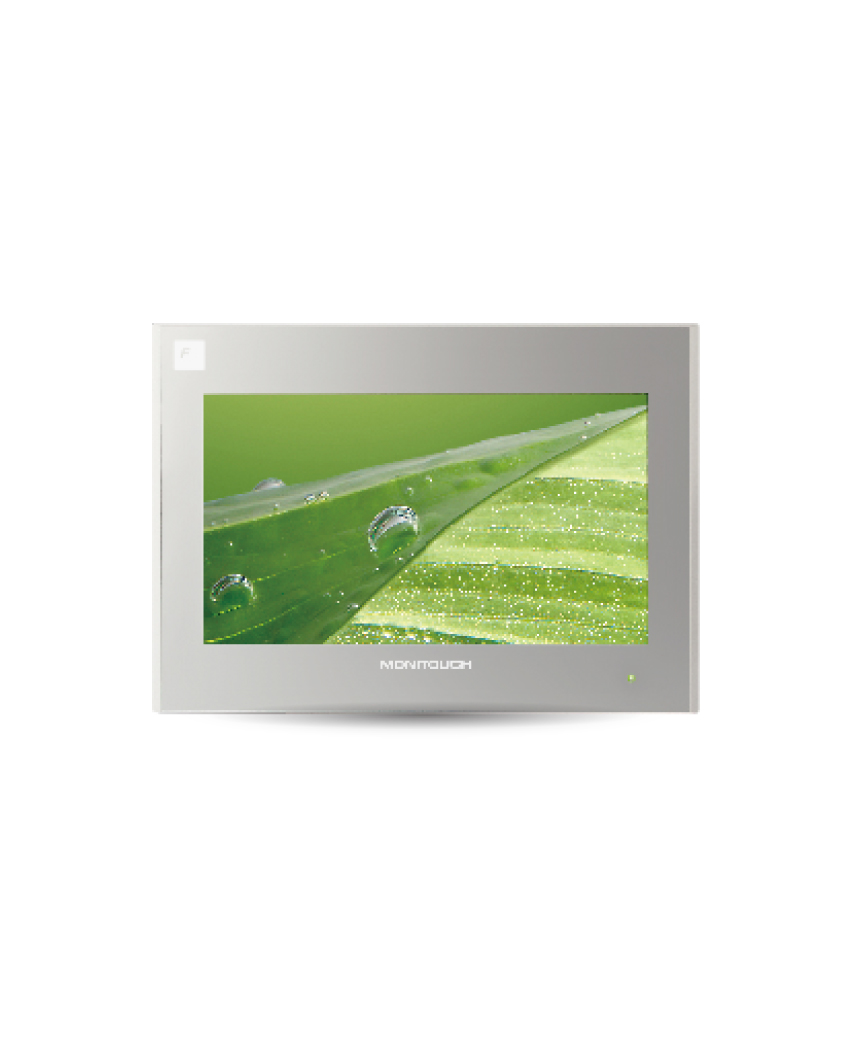

| V9101iW | ||
|---|---|---|
| Power supply | Rated voltage | 24V DC |
| Permissible range of voltage | DC: ±10% | |
| Permissible momentary power failure | DC within 1ms | |
| Demand (maximum rating) | DC: 27W or less | |
| Insulation resistance | DC500V 10MΩ or more | |
| Physical environment | Ambient temperature | 0～50℃ *1 |
| Ambient humidity | 85%RH or less (without dew condensation) *1 | |
| Operation altitude | 2,000 meters or lower | |
| Atmosphere | Not to be exposed to corrosive gas, or conductive dust | |
| Storage temperature | -10～60℃ *1 | |
| Storage humidity | 85%RH or less (without dew condensation) *1 | |
| Overvoltage category | Category II | |
| Contamination level | Level 2 | |
| Mechanical operating conditions | Resistance to oscillation | Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5~9Hz, pulsating with:3.5mm, 9~150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each) |
| Resistance to shock | Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, three times each (18 times in total) |
|
| Electric operating conditions | Resistance to noise | Noise voltage: 1,000Vp-p, pulse width: 1μs, pulse rise time: 1ns |
| Resistance to static discharge | Complies with IEC61000-4-2, contact: 6kV, air: 8kV | |
| Installation conditions | Grounding | Grounding resistance: Less than 100Ω, FG/SG separation |
| Structure | Front panel:Complies with IP66, Type 4X/13 *2 (when waterproof gasket is installed) Rear cover:Complies with IP20 Form: Single unit, Installation method: Panel mounting |
|
| Cooling system | Natural air cooling | |
| Dimensions W*H*D(mm) | 278.5×198.5×53.2 | |
| Panel cutout (mm) | 257.0×183.0（+0.5/-0） | |
| Case color | Light gray | |
| Material | PC | |
- *1: Use at a wet-bulb temperature of 39°C or less because higher temperatures may cause failure.
Performance Specifications
| Screen memory (FROM) | 64MB | |
|---|---|---|
| Backup memory (SRAM) | 800KB | |
| Display | Display device | TFT color LCD |
| Resolution | 1024×600 | |
| Display size | 10.1″ | |
| Colors | 16.7 million *3 | |
| Backlight | LED | |
| Backlight life | 50,000 hours | |
| Touch switch | Type | Capacitance |
| External interface | D-Sub 9-pin (CN1) | RS-232C/ RS-485(2-wire system)/ RS-422(4-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500*4 bps |
| Modular 8-pin （MJ1/MJ2） |
RS-232C/ RS-485(2-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps |
|
| SD card | One card slot provided as standard | |
| Ethernet | 2ch, Baud rate: 100Mbps, 10Mbps |
|
| Wireless LAN*5 | Complies with IEEE802.11b/g/n(2.4GHz) | |
| USB | Type A,Type mini-B(Ver.2.0) | |
| Sound output | 1ch provided as standard | |
| Clock | Backup period | 5 years (Ambient temperature 25°C) |
| Calendar accuracy | Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied) | |
| Standard | CE marking | EN61000-6-2,EN61000-6-4、EN50581 |
| UL･cUL | UL61010-1、UL61010-2-201※6 | |
| KC | Compliant | |
| Radio Act *5 | Japan:TELEC USA:FCC Canada:IC RSS Europe:RE South Korea:KC |
|
| Classification Standard | – |
- *2: Hardware of Ver. c or later
- *3: For displaying pictures, 3D parts,video, and RGB input (excluding high-speed mode) only. Other parts are displayed in 65,536 colors.
- *4: Only for Siemens MPI (Incompatible with DUR-00).
- *5: Wireless LAN-compatible products only.
- *6: Only for Hardware Ver. f or later. Applicable standard for Hardware Ver. a to e is UL 508.
